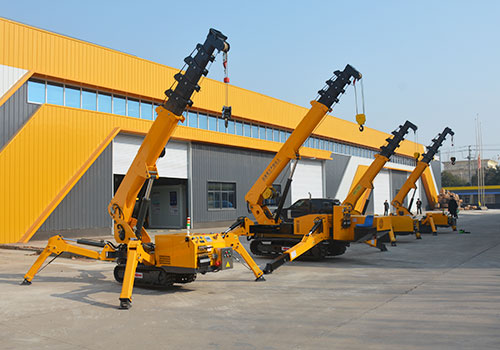

Our spider crane adopts miniature design, small size and strong lifting capacity. It can be customized, easy to maintain, oil-electric, simple to operate. It is efficient and safe in narrow spaces.

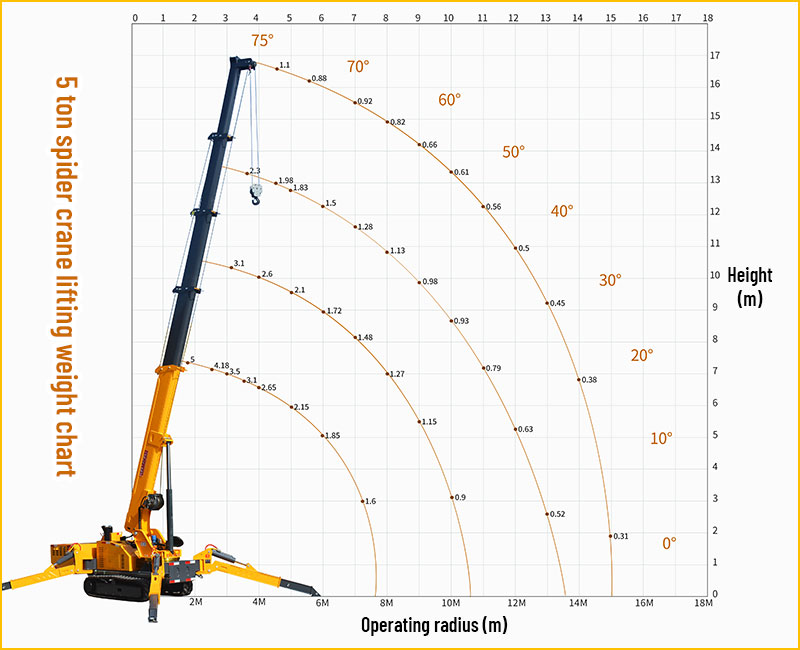

Maximum operating radius
Maximum ground lift

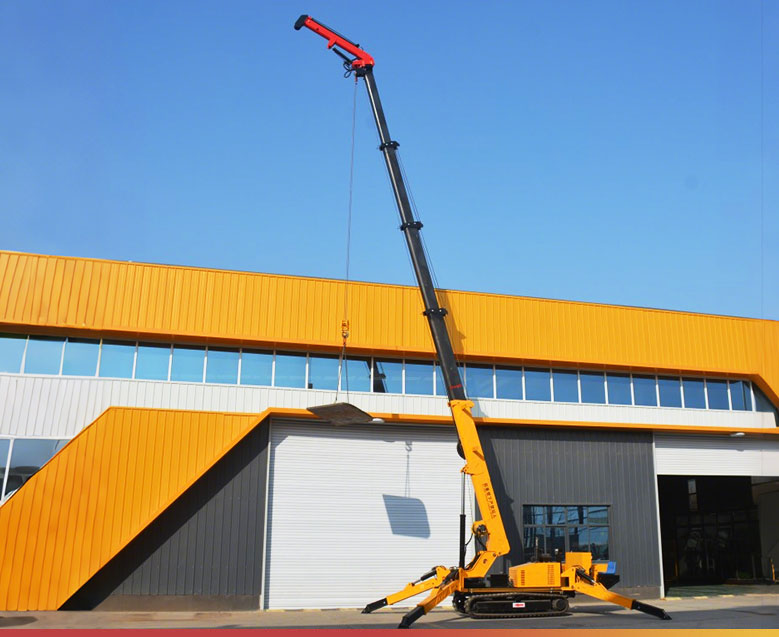

Telescopic arm length
Deadweight

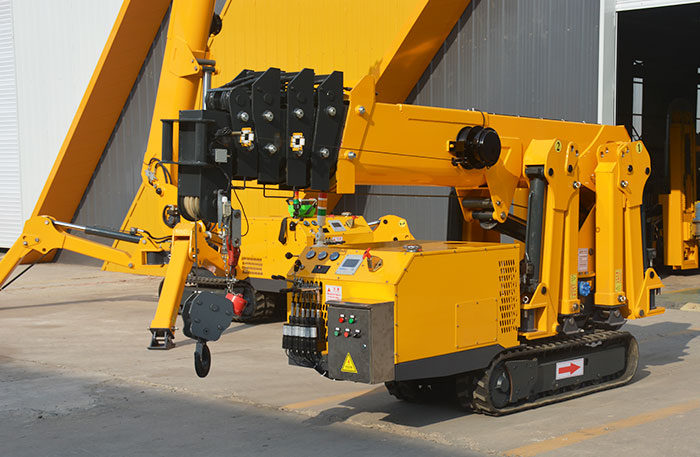

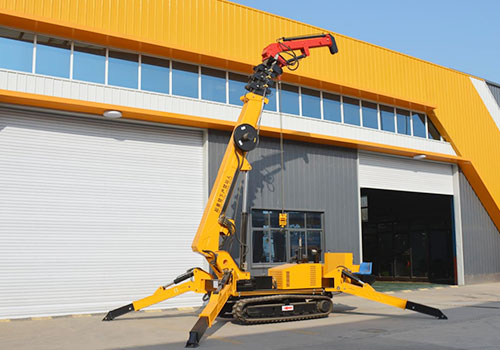

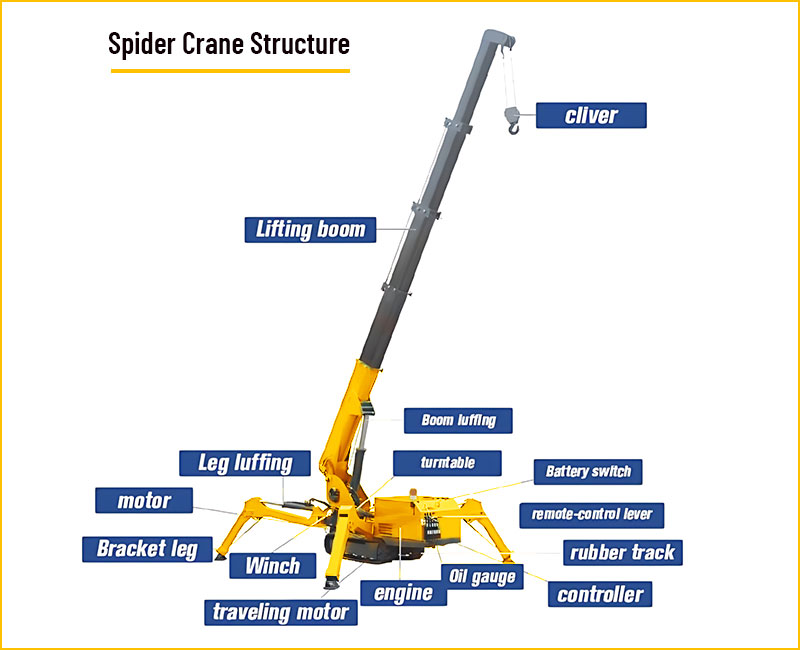

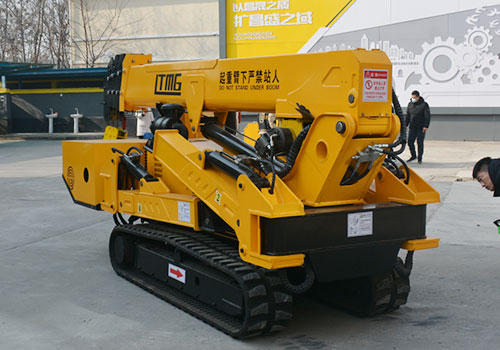

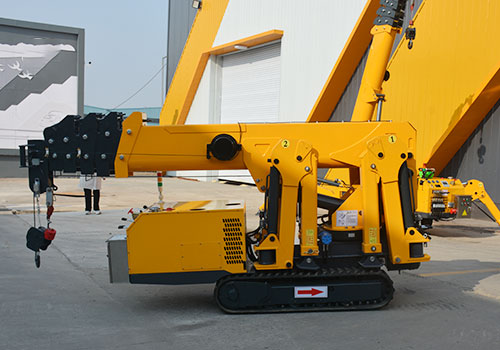

YG spider crane can be operated by wireless remote control or body switch. It adopts rubber crawler hydraulic walking device, and its hoisting, telescopic, heaving and rotating devices are all hydraulically driven. The whole machine adopts the design and optimization concept of three-dimensional modeling, finite element analysis and whole machine calculation, with the advantages of good whole machine flexibility, convenient operation, compact structure, light and flexible operation, and high reliability. It is very suitable for operation in narrow places where large cranes cannot be deployed.
| Specification | 3T | 5T | 8T | |
| Maximum Operating Radius | 8.8m×0.2t | 14m×0.5t | 16.5m*0.5t | |
| Maximum Ground Lift | 9.2mX0.7t | 16.8m | 18m | |
| Hoisting Device | Hook Rising Speed(4 ropes） | 0-8m/min | 12m/min | 12m/min |
| Wire Rope Specifications（m) | Φ8mm×45 | Φ11mm×80 | Φ11mm×80 | |
Telesco Picdevice | Telescopic Arm Form(U-shaped) | 5-section boom | 5-section boom | 5-section boom |
| Telescopic Arm Length/Time | 3.1m-9.2m/20sec | 4.7m-16.5m/54sec | 4.7m-16.5m/54sec | |
| Heaving Device | Boom Angle/Time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
| Swivel Device | Rotation Angle/Speed（continuous） | 0-360°/60sec | 0-360°/38sec | 0-360°/38sec |
| Overall Size (m) | 2.9*0.8*1.5 | 5*1.5*1.9 | 5*1.6*2.18 | |
| Deadweight（T） | 2700kg | 6200kg | 7200kg | |
Ordinary cranes or hoists cannot compare.

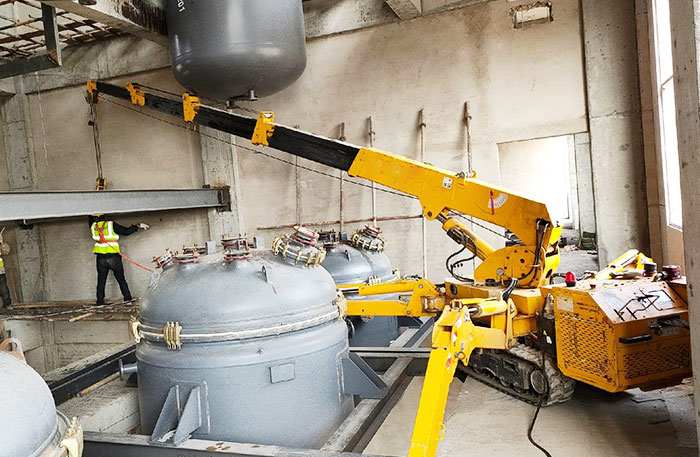

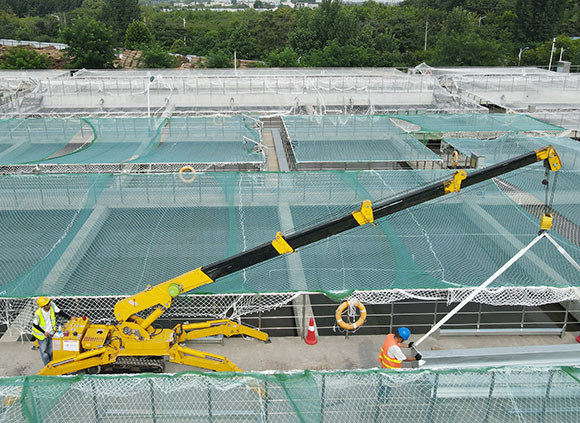

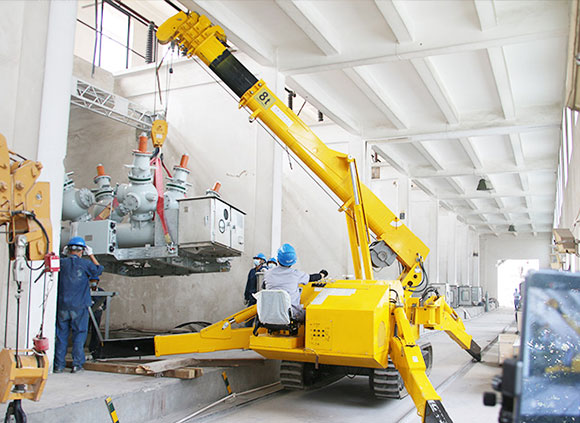

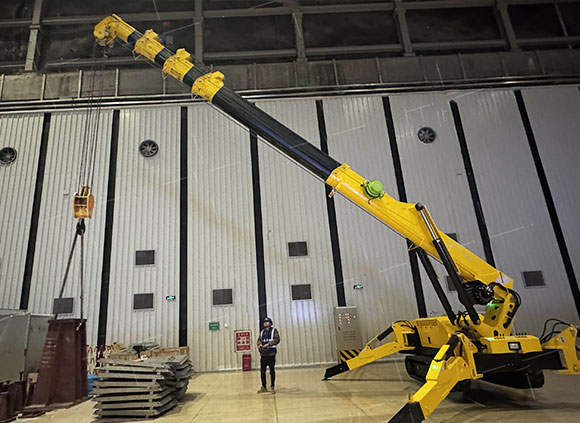

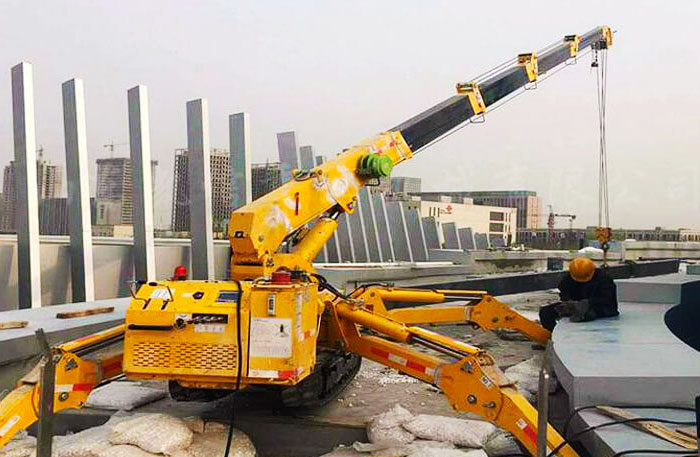

Rooftops, indoors, shopping malls or densely populated areas.

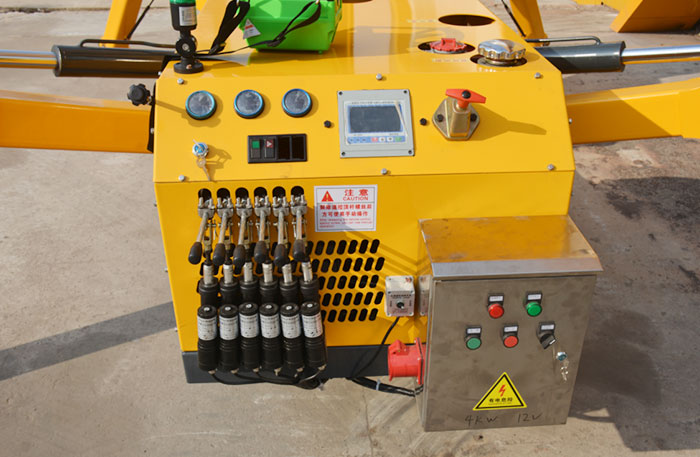

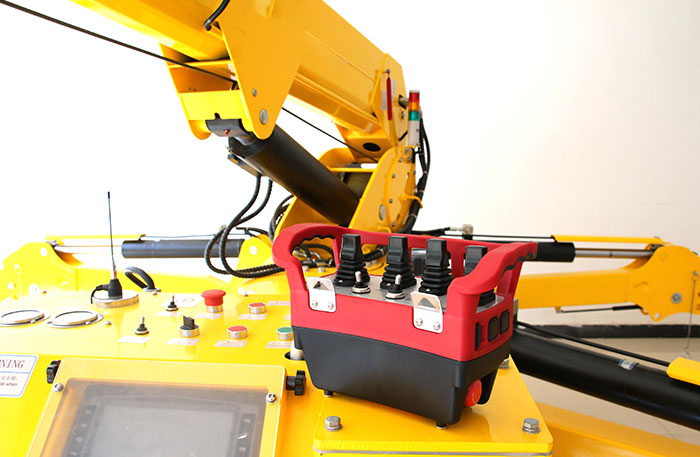

Remote control with emergency stop button.
Timely warning of uneven force on the outriggers.

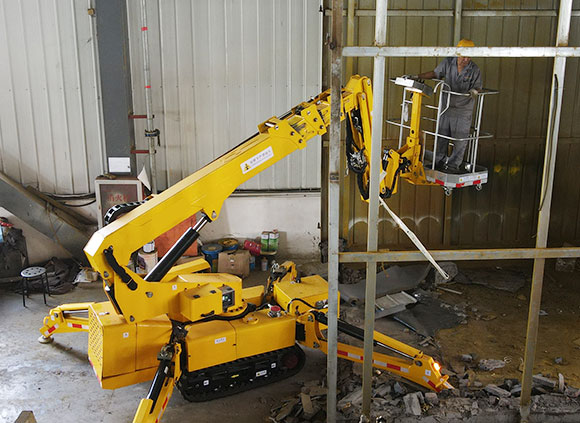

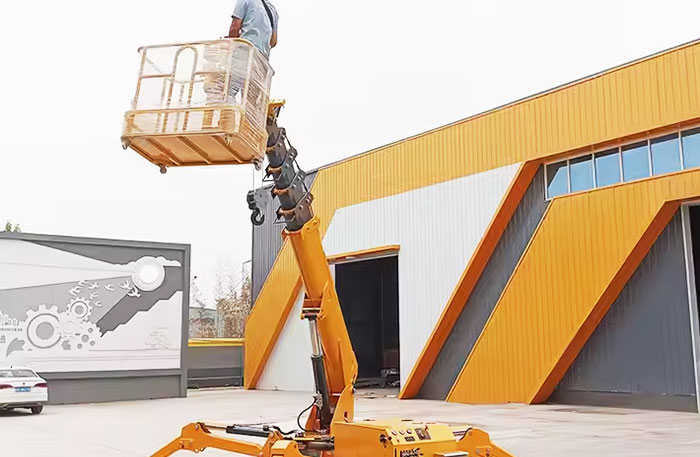

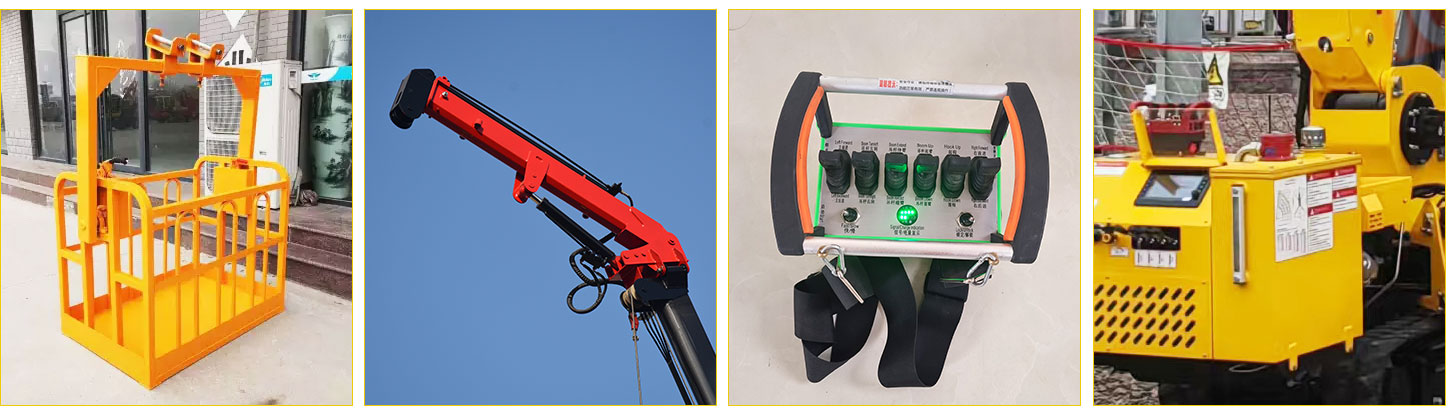

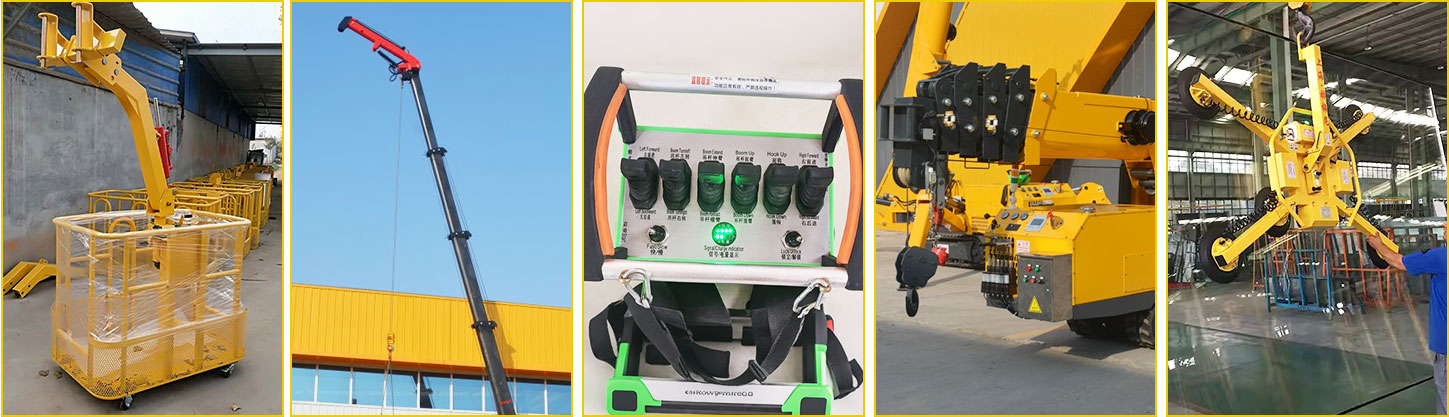

Man basket, adjustable fly jib, remote control, safe load indicator etc.

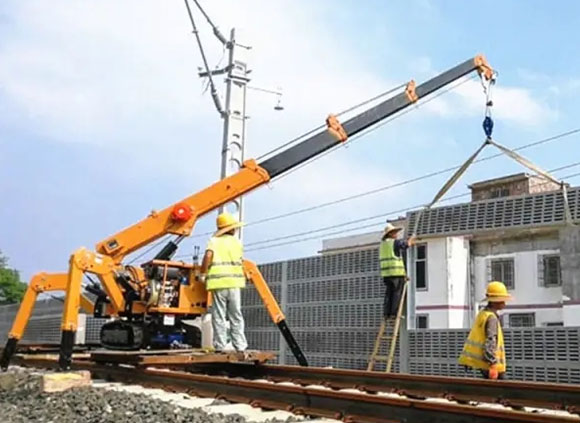

Works on rough/sloped ground, 360° rotation, easy transport.
