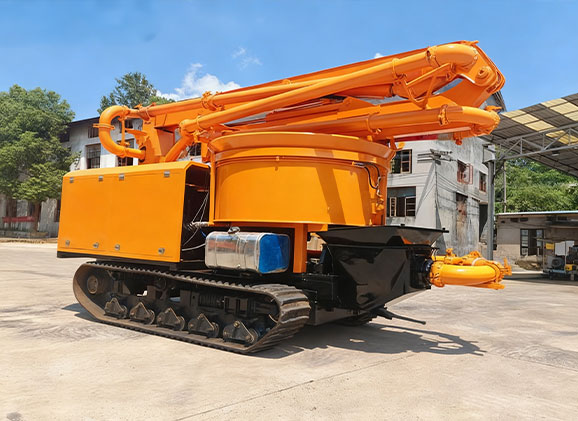

YG innovative concrete pump truck integrates mixing and pumping into a single, highly mobile platform. Engineered for challenging sites, it delivers exceptional reach and powerful output with dual-mode flexibility for both boom and line pumping.
Pumping Capacity
Max. Fabric Height
YG flagship model concrete pump truck is an integrated mixing-and-pumping truck, a true industry leader that combines a high-capacity mixer with a long-reach boom. It eliminates the need for a separate mixer, streamlining the entire process from raw materials to precise placement. For confined spaces and narrow rural roads, a compact and highly agile model is available, designed with minimal dimensions for superior maneuverability. Engineered for reliability and efficiency, these pump trucks are the comprehensive solution for modern concrete construction demands.
| Project | 32M | 33M | 38M | 44M |
| Maximum fabric height | 32000(mm) | 33000(mm) | 37200(mm) | 43300(mm) |
| Maximum fabric radius | 26500(mm) | 29000(mm) | 33000(mm) | 39000(mm) |
| Maximum fabric depth | 17600(mm) | 21000(mm) | 25000(mm) | 31000(mm) |
| Maximum theoretical pumping capacity | 100m³/h | 110m³/h | 110m³/h | 120m³/h |
| Maximum export pressure | 8.5（Mpa） | 8.5（Mpa） | 8.5（Mpa） | 8.5（Mpa） |
| The number of theoretical pumps | 25（Time /minute） | 25（Time /minute） | 25（Time /minute） | 25（Time /minute） |
| Hydraulic system pressure | 32 Mpa | 32 Mpa | 32 Mpa | 32 Mpa |
| The inner diameter of the conveying cylinder | 230mm | 230mm | 230mm | 230mm |
| Delivery cylinder trip | 1400mm | 1450mm | 1400mm | 1600mm |
| Transmission pipe diameter | 125mm | 125mm | 125mm | 125mm |
With a compact chassis design, it navigates the tightest rural and urban job sites with superior ease.

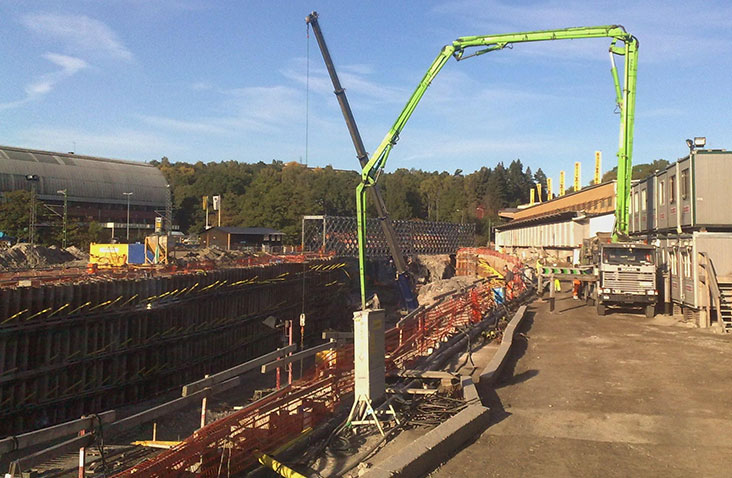

Instantly switches between boom placement and high-pressure line pumping to cover vast or hard-to-reach areas.
Remote intelligent control and adaptive power systems ensure straightforward operation and reduced fuel consumption.
Integrates a high-capacity mixer and powerful pump on a single chassis, enabling continuous concrete production and placement directly at the point of need.
Features an optimized pipeline system with minimal bends, significantly reducing the risk of blockages for smooth, uninterrupted concrete flow.

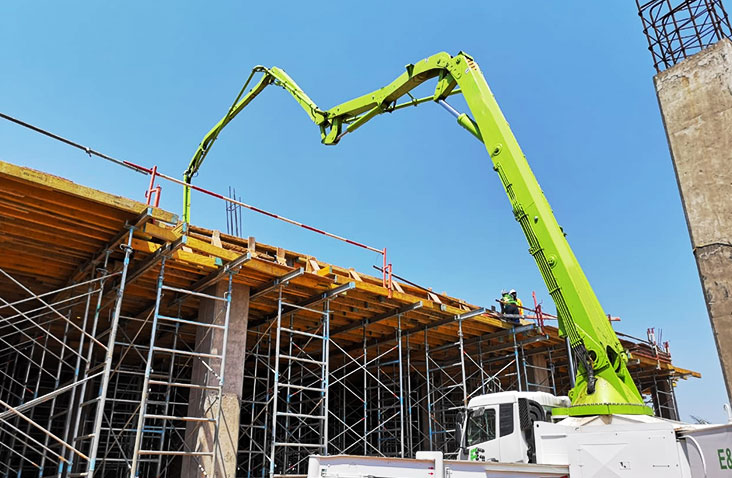

The advanced boom stabilization technology and rigid construction minimize vibration during operation, ensuring smoother concrete placement and less stress on the structure.
